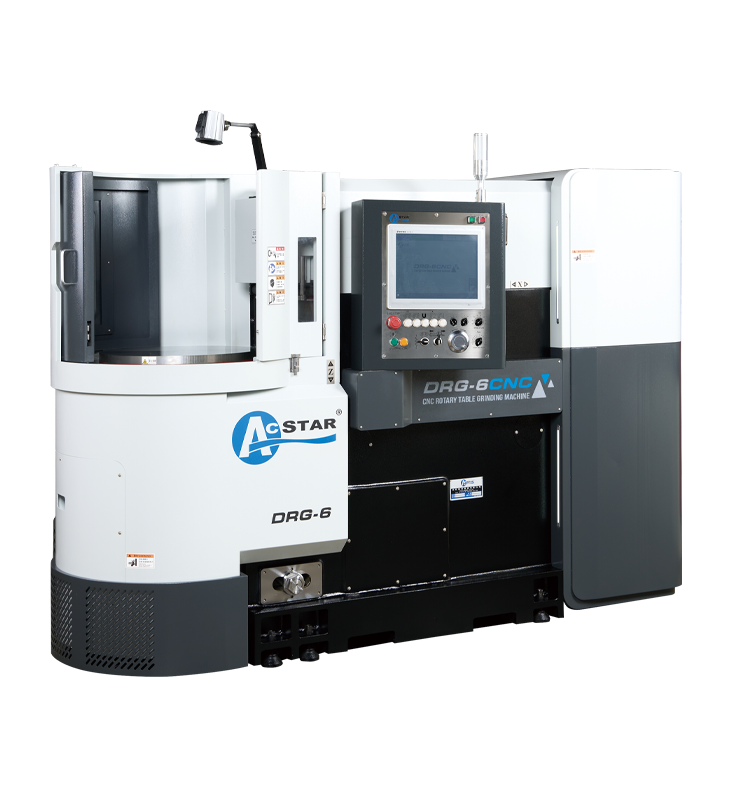

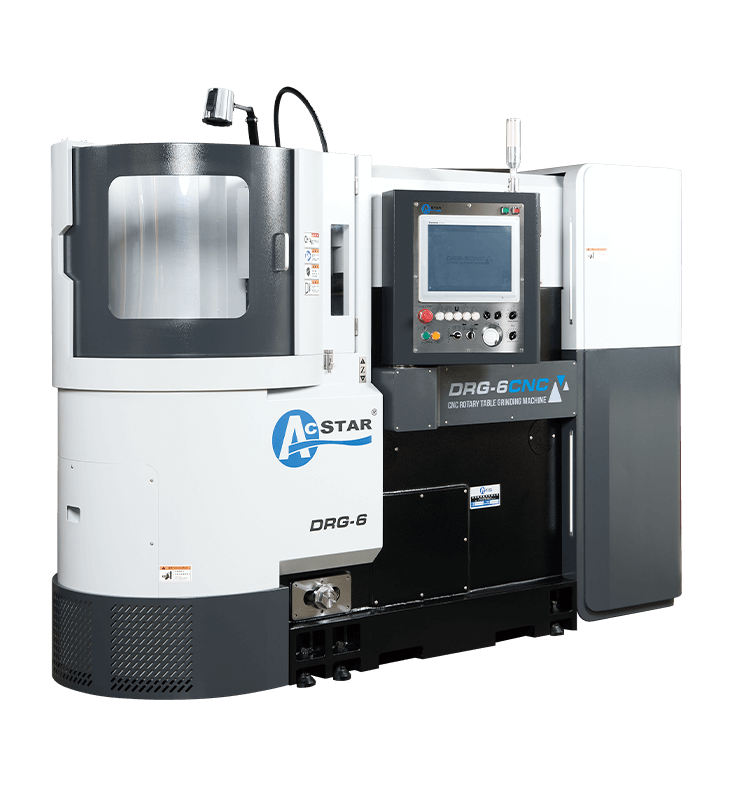

DRG-6 Rotary Surface Grinder
DRG-6 Rotary Surface Grinder

DRG-6

Rotary Surface Grinder

Micron-Level Precision,
Maximum Efficiency
3 Times Higher Productivity than Reciprocating Type
The DRG-6 integrates a high-precision ram structure with a full-axis servo motor drive, achieving both exceptional accuracy and high productivity. Through precise grinding volume control, the machine ensures consistent, stable quality across all workpieces on the table.

Example of Machining a Representative Workpiece

Material: S45C　　 Flatness < 3 μm　　
Outer Diameter: 385 × 30 mm　　 Double-Sided Machining Time ※ 6 min　　
  ※ Double-sided machining time = Single-side machining + Reversal + Single-side machining

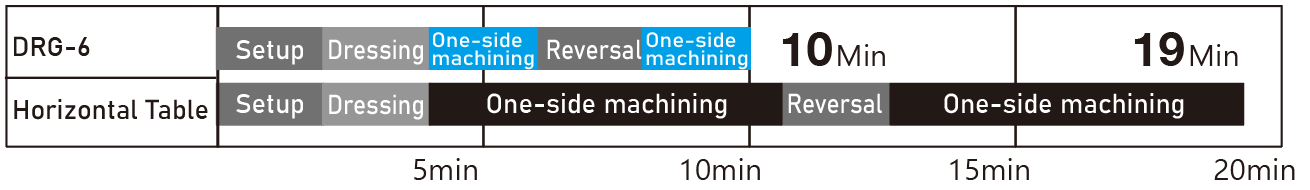

Machining Time Comparison:

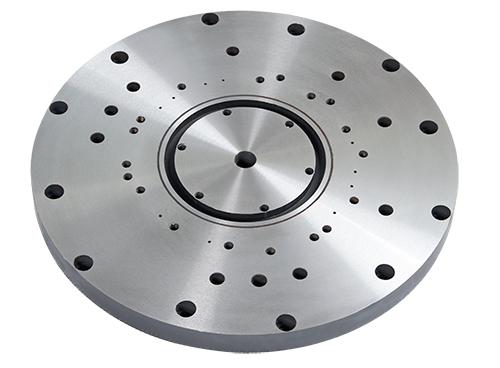

Processing time per workpiece reduced by approximately 47.4% . Machining Time Comparison
Example of Machining

Triple Productivity Performance

The rotary table design boosts machining efficiency to up to three times that of a conventional reciprocating surface grinder.
It covers a wide workpiece area in a single setup, minimizing reciprocating travel and clamping frequency.
As a result, machining time is shortened, per-piece cost is reduced, and overall productivity is greatly improved.
Grinding wheel back-and-forth movement speed during machining:
Horizontal Table　　＜　　DRG-6 (higher speed settings are possible)

Grinding wheel back-and-forth movement speed during machining
Grinding wheel back-and-forth movement amount:
Horizontal Table　　＞　　DRG-6 (higher speed settings are possible)

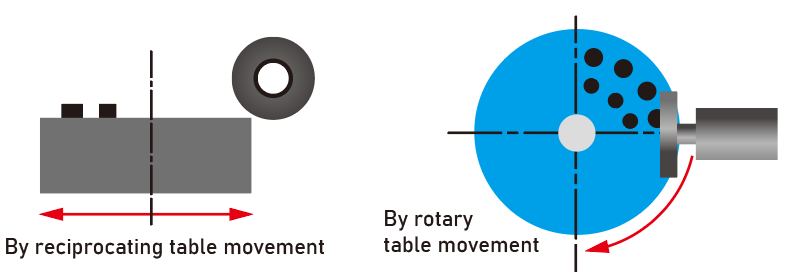

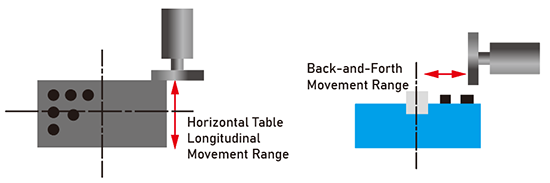

Machining Efficiency Comparison for the Same Work Area (Image)
Machining Efficiency Comparison for the Same Work Area (Image)

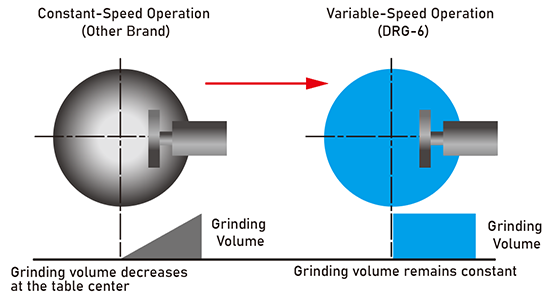

Variable-Speed Motion Control

During table rotation, the outer area operates at a lower speed while the center runs at a higher speed.
The system automatically coordinates precise acceleration and deceleration according to the spindle feed rate, ensuring a stable and consistent grinding volume across all positions.
This feature greatly enhances machining quality stability and significantly boosts overall production efficiency.
Variable-Speed Table Control (Image)
Variable-Speed Table Control (Image)

  • ULTRA-HIGH PRECISION

    The precision angular contact ball bearing spindle ensures micron-level accuracy and excellent surface flatness.

  • COST REDUCTION

    The rotary table covers a large area in a single setup, reducing reciprocating cycles and clamping frequency, thereby lowering per-part processing costs.

  • LONG-TERM STABILITY

    Equipped with automatic lubrication and cooling systems to enable extended continuous operation with stable quality output.

  • ENERGY SAVING

    The servo-driven system, combined with optimized power design, significantly reduces energy consumption and supports sustainable green manufacturing.

  • SMART CONTROL (OPTION)

    The optional CNC intelligent monitoring system enables automatic wheel dressing, machining compensation, and process data tracking—enhancing smart manufacturing capability.

  • HYDRAULIC-DRIVEN ROTARY TABLE (OPTION)

    An optional hydraulic-driven rotary table offers high rigidity and load capacity for heavy or large workpieces during extended grinding operations.The hydraulic system provides stable torque output, ensuring rotational precision and long-term durability.

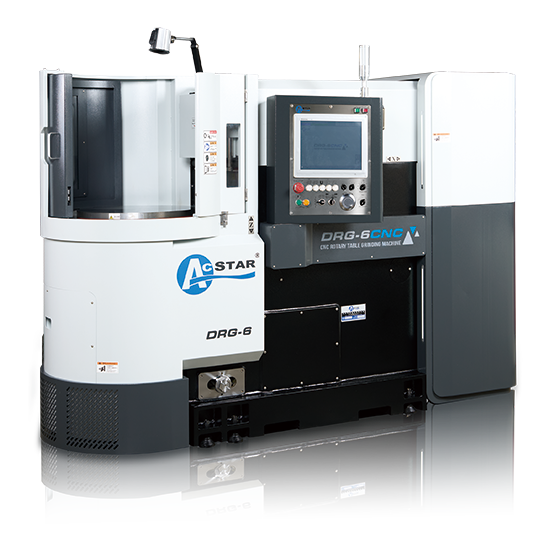

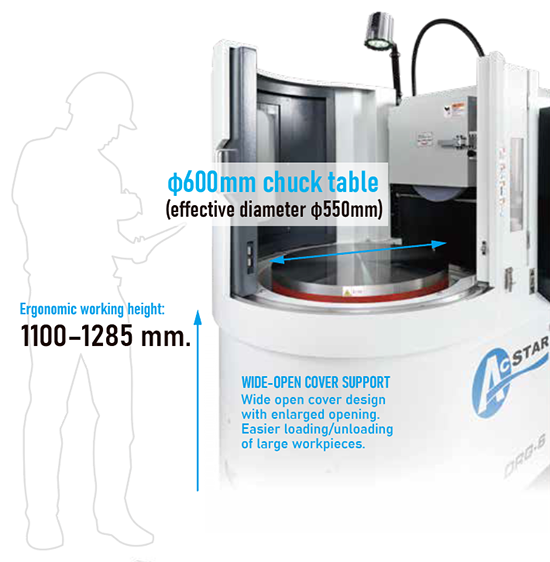

Ergonomic Working
ITEM SPECIFICATION
Capacity
Type Bearing Spindle
Controlled Axes 2 + 1
Controller SYNTEC (15”)
Electromagnetic Chuck Diameter 600 mm
Distance - Table Surface to Wheel Bottom 185 mm
Distance - Floor to Working Surface 1100 - 1285 mm
Max. Load Capacity 100 kg
Effective Chuck Width 550 mm
Rotary Table
Speed Range 50 - 250 min-1 (Stepless)
Adjustable Tilt Angle ±3°
Table Feed
Manual Handwheel Feed (per scale): 0.001, 0.01, 0.1 mm
Joystick Feed Speed: 100, 500, 1000, 2000 mm/min
Operation: Joystick / MPG
Automatic Rapid Feed Speed: 2000 mm/min
Grinding Feed Speed: 0.1–1000 mm/min
Min. Setting Unit: 0.001 mm
Travel: 335 mm
Ram Feed
Manual Handwheel Feed (per scale): 0.001, 0.01, 0.1 mm
Joystick Feed Speed: 100, 500, 1000, 2000 mm/min
Operation: Joystick / MPG
Automatic Rapid Feed Speed: 5000 mm/min
Grinding Feed Speed: 0.1–5000 mm/min
Min. Setting Unit: 0.001 mm
Travel: 435 mm
Grinding Wheel
Size φ355×38×φ127 mm
Speed Range 0 - 1800 min-1
Motor Power
Wheel Spindle 7.5 kW／10 HP
Rotary Table 2.4 kW
Vertical Feed 1.7 kW
Ram Feed 1.7 kW
Others
Power Requirement 17 kVA
Machine Weight Approx. 3500 kg

To ensure safe and proper use, please make sure to carefully read the "Instruction Manual" before operation.

  • ※ Specifications, appearance, and equipment are subject to change without prior notice due to improvements.
  • ※ The data listed in this catalog may vary depending on room temperature, workpiece material, tools, and processing conditions. Please note that these are not guaranteed values.
  • ※ For applications to administrative authorities (installation, export, financing, etc.) regarding the machines and equipment listed in this catalog, please use the model name DNG-6.
  • ※ The specifications listed in this catalog are applicable only within Taiwan.
